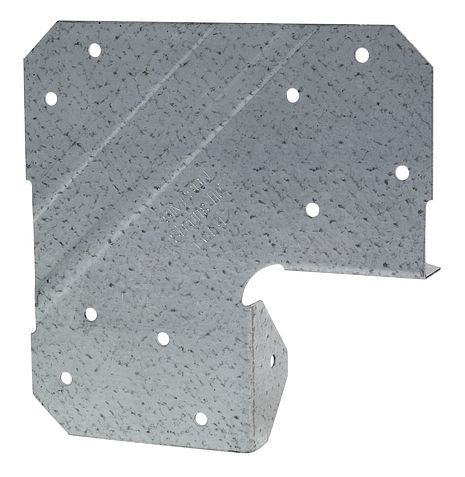

Simpson Strong-Tie Galvanized Steel End Post Cap

Simpson Strong-Tie

The LCE is designed to provide a connection when the end of a beam bears on a post. The versatile, two-piece design of this light post cap for end conditions can accommodate 4x and 6x lumber. The LCE is ideal for both new and retrofit construction and is load rated when installed in pairs.

Key Features

  • Always install in pairs; universal design eliminates need for rights and lefts
  • Stronger than angled nailing or screw fastening
  • Eliminates nailing into end grain
  • Tested and approved for mitered end conditions

Finish

  • Galvanized, ZMAX® coating or stainless steel; see Corrosion Information

Installation

  • Use all specified fasteners; see General Notes
  • Install all models in pairs to achieve allowable loads
  • Install one LCE4 on each outside face for mitered corners
