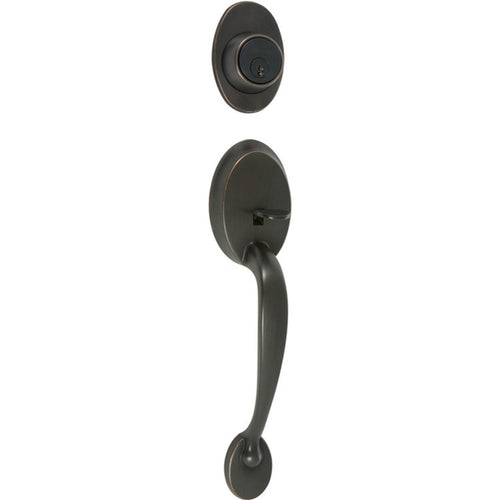

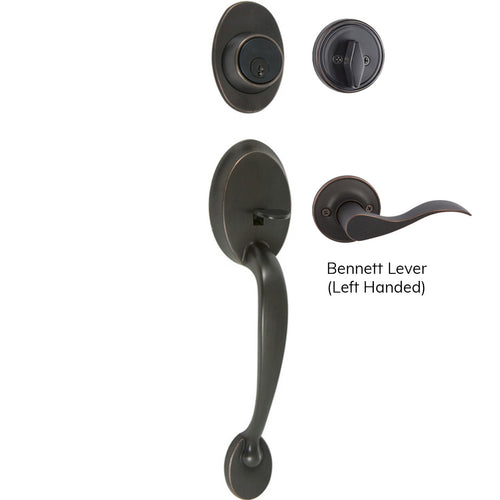

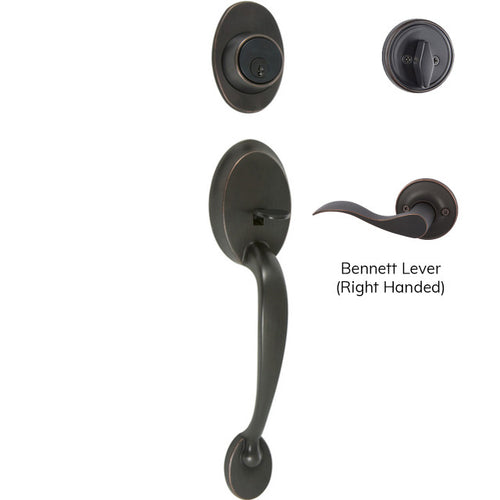

Callan Colton Single Cylinder Handleset (US10BE)

Keyed Entry (Single Cylinder) Function: This single cylinder deadbolt is keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.

Features:

• Meets BHMA Grade 3 security requirements
• All-metal construction ensures durability that will last for years to come
• Fully reversible handing for left or right handed applications
• Designed for an easy one person installation
• Comes standard with a round corner latch faceplate and 1/2" throw
• Includes a Limited Lifetime Mechanical and 5-Year Finish Warranty

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Projection: 2-7/16"
• Center to Center: 5"
• Grip Center to Center: 8-3/16"
• Latch Faceplate: Round Corner
• Cylinder: 5 Pin KW1
• Material: Zinc
